Smith-Chart Smith-Chart
Funkmodul / radio modul
Anwendung / Application

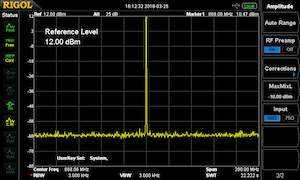

Spektrum eines 10mW Senders

Sub GHz

We develop professional radio modules in Sub GHz range for industrial use according to:
- ETSI EN 300-220
- ETSI EN 300-113

Remote Control Technology

Our radio modules are developed for industrial remote control systems. If you are looking for wireless Remote Control Technology, please ask us.

Development / Redesign

If you are looking for a replacement of a discontinued product, we can help. We will develop an individual radio module for you.

PRODUCTS:

RECEIVER:

Receiver/Empfänger

TRANSMITTER:

Sender/Transmitter

TRANSCEIVER:

Transceiver

APPLICATIONS:

FORESTRY:

Application Forestry

RADIO-CONTROL:

Application construction industry

OFFER:

  • DEVELOPMENT/ADVICE:
  • Development / ADVICE
  • REDESIGN:
  • Development / Redesign
Empfänger/Receiver 433MHz nach ETSI EN 300-113 Empfänger/Receiver 433MHz nach ETSI EN 300-220

RECEIVER:
RX-M1-711:(433,0625-434,7875MHz)
RX-M1-311:(868,0000-870,0000MHz)
Receiver suitable for highly reliable and demanding applications according to ETSI EN 300-113 with an analogue and a digital output.

RECEIVER:

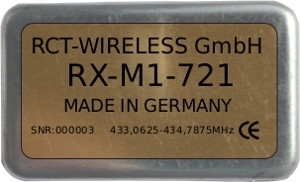

RX-M1-721:(433,0625-434,7875MHz)
RX-M1-321:(868,0000-870,0000MHz)
Receiver suitable for highly reliable and demanding applications according to ETSI EN 300-220 with an analogue and a digital output.

TOP
Sender/Transmitter 433MHz/10mW ETSI-EN 300-113 Sender/Transmitter 433MHz/250mW ETSI-EN 300-113

Transmitter:
TRX-M1-7111:(433,0625-434,7875MHz)
TRX-M1-3111:(868,0000-870,0000MHz)
Transmitter suitable for highly reliable and demanding applications according to ETSI EN 300-113 with analogue and digital modulation.
Output-Power: 10mW.

Transmitter:
RX-M1-7141:(433,0625-434,7875MHz)
Transmitter suitable for highly reliable and demanding applications according to ETSI EN 300-113 with analogue and digital modulation.
Output-Power: 250mW.

TOP
Transceiver 866MHz/10mW ETSI-EN 300-113 Transceiver 866MHz/10mW ETSI-EN 300-220 Transceiver 866MHz/10mW ETSI-EN 300-220 Transceiver 433MHz/10mW ETSI-EN 300-220 Transceiver 433MHz/10mW ETSI-EN 300-220 Transceiver 433MHz/10mW ETSI-EN 300-220

Transceiver:
TRX-M1-711:(433,0625-434,7875MHz)
TRX-M1-311:(868,0000-870,0000MHz) suitable for highly reliable and demanding applications according to ETSI EN 300-113. Devices with an analogue and a digital output. Power-Range from 10mW up to 250mW.

Transceiver:
TRX-I1-721:(433,0625-434,7875MHz)
TRX-I1-321:(868,0000-870,0000MHz) suitable for highly reliable and demanding applications according to ETSI EN 300-220. Devices with a digital Output. Power-Range from 10mW up to 250mW.

Transceiver:
TRX-M2-721:(433,0625-434,7875MHz)
TRX-M2-321:(868,0000-870,0000MHz) Transceiver suitable for highly reliable and demanding applications according to ETSI EN 300-220. Devices with a digital Output and 10mW Output-Power.

Transceiver:
TRX-I2-721:(433,0625-434,7875MHz)
TRX-I2-321:(868,0000-870,0000MHz) Transceiver suitable for highly reliable and demanding applications according to ETSI EN 300-220. Devices with a digital Output and 10mW Output-Power.

Transceiver:
TRX-M3-721:(433,0625-434,7875MHz)
TRX-M3-321:(868,0000-870,0000MHz) Transceiver suitable for highly reliable and demanding applications according to ETSI EN 300-220. Devices with a digital Output and 10mW Output-Power.

Transceiver:
TRX-I3-721:(433,0625-434,7875MHz)
TRX-I3-321:(868,0000-870,0000MHz) Transceiver suitable for highly reliable and demanding applications according to ETSI EN 300-220. Devices with a digital Output and 10mW Output-Power.
